Actually, this is normal.
This misalignment is not abnormal, as it is a clamping fee to make the insert adhere to the holder by tightening the screw.
For indexable tools, it is common to have a structure with such a clamping allowance.
For indexable tools, it is common to have a structure with such a clamping allowance.
 |
 |
 |
| Place the insert on the seat→ | Tighten the clamping bolts lightly→ | Tighten the clamping bolts all the way |
When the clamp screw is tightened, the insert is pulled to the body restraint surface

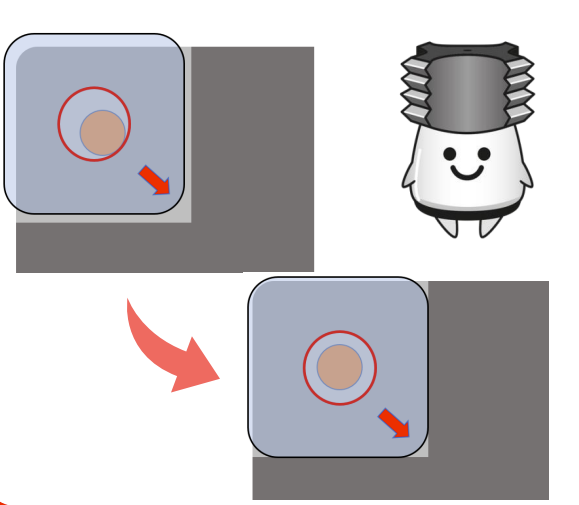

▽ Image from directly above the insert

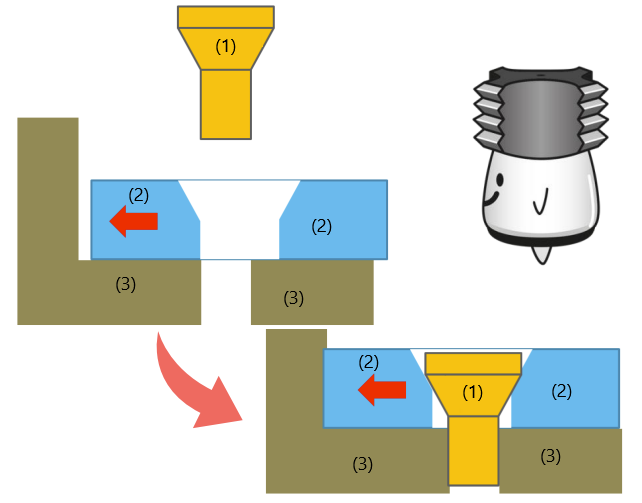

Image from the side of the insert
(1) Clamp screw
(2) Inserts
(3) Body
(2) Inserts
(3) Body
(FAQID:8451)
