OSG's Portable Band Saw
OSG-WIKUS band saws for portable machines
Achieving superior performance and high durability
forte
• M42 cobalt high-speed material combines long tool life and sharpness
•M42 cobalt high-speed can also cut stainless steel
• Lengths are freely manufacturable
•Variable pitch is also available for intermittent cutting of pipes, etc.
We are a manufacturer specializing in replacement blades, so you don't have to choose a machine!
Please leave it to any machine manufacturer!
Long tool life ・ Fast / Clean
Size: 1470×13×0.65-14S
Material: Round pipe outer diameter 42.7mm, wall thickness 3.5mm
Cutting Condition: Saw Speed: 53~54m Feed: Machine Gravity
Supplement: Single-cut, dry type (no oil)
| Workpiece materials | iron | SUS304 | ||
| another company | WIKUS | another company | WIKUS | |
| 1st Cut(s) | 75 | 56 | 76 | 75 |
| 10th cut | 72 | 53 | 104 | 73 |
| 20th cut | 76 | 51 | 119 | 78 |
| 30th cut | 82 | 54 | 149 | 88 |
| 40th cut | 82 | 55 | 177 | 82 |
| 50th cut | 87 | 54 | 202 | 90 |
| 100th cut | 102 | 61 | 253 | 148 |
| 110th cut | 102 | 61 | 271 | 156 |
| 150th cut | 106 | 64 | 224 | |
| 190th cut | 112 | 65 | 250 | |
| 200th cut | 115 | 69 | ||
| 210th cut | 111 | 69 | ||
| 250th cut | 71 | |||
| 300th cut | 70 | |||
| 350th cut | 74 | |||
| Endurance (cut) | 217 | 353 163%UP | 119 | 196 165%UP |
| tool life Judgment | Copper rupture | Copper rupture | Copper rupture | Copper rupture |
| endurance | - | 1.6 times | - | 1.7 times |
| Time-saving | - | 35% reduction | - | 45% reduction |

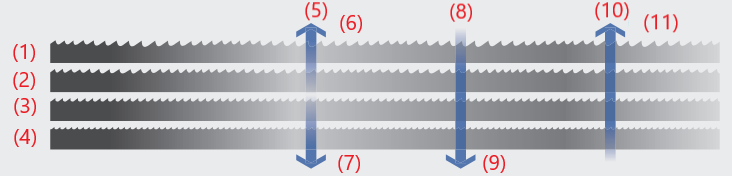

Pitch selection
(1) 8/12S Cutting length: 15~30mm
(2)10/14S Cutting length: 5~20mm
(3)14S Cutting length: 3~15mm
(4)18S Cutting length: 1~10mm
(5) Cutting material (6) Medium meat and medium diameter (7) Thin goods and small diameter (8) Cutting surface (9) Clean (10) Cutting speed (11) Fast
| overall length (mm) | Width (mm) | Thickness (mm) | Pitch (number of mountains) | Hitachi Koki | Shin Daiwa | Asada | Makita | Quantity | inventory |
| 900 | 13 | 0.5 | 8/12S 10/14S 14S 18S |
CB-14/18DBL | 10 | ● | |||
| 1130 | CB-10/12※ | ● | |||||||
| 1140 | PB180D,2107F/W | ● | |||||||
| 1140 | 0.65 | RBH-120 | 736/7721 | 2106 | ● | ||||
| 1260 | CB-13 | SB-120,RB-10/120 | ● | ||||||
| 1415 | 120 | ● | |||||||
| 1425 | 125,12F | B127/128 | ● | ||||||
| 1625 | 170 | B180/181 | ● | ||||||
| 1635 | 170,185,18F | ● | |||||||
| 1640 | Beaver 6/6F | B184/185 | ● | ||||||
| 1770 | RB-18 | ● | |||||||
| 1840 | CB-18 | RB-180 | ● |
The above is an excerpt. Other sizes are also available. Check against the machine manufacturer's catalog.
● = Standard stock products
References: OSG's general catalog of band saws (Japanese only)
☆ Summary < questions about portable band saws>
(FAQID:144)
